Falcon Single Output MPPT Regulator, Bluetooth (No LCD)

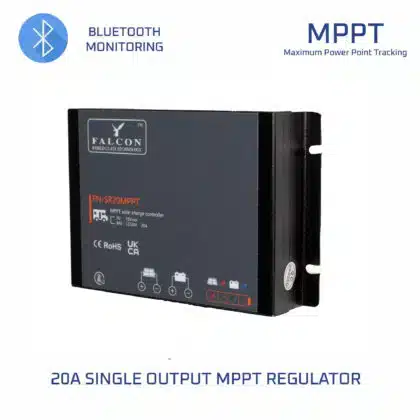

FALCON Single Output MPPT Solar Regulator With Bluetooth – No LCD (10A, 20A)

From £45.00

From £45.00
SKU please choose an option above. Category

Read more about this product.

The FALCON Single Output MPPT Solar Regulator With Bluetooth comes in 10A and 20A versions for Liquid, GEL, AGM and Lithium batteries.

Upgrade or build your solar system

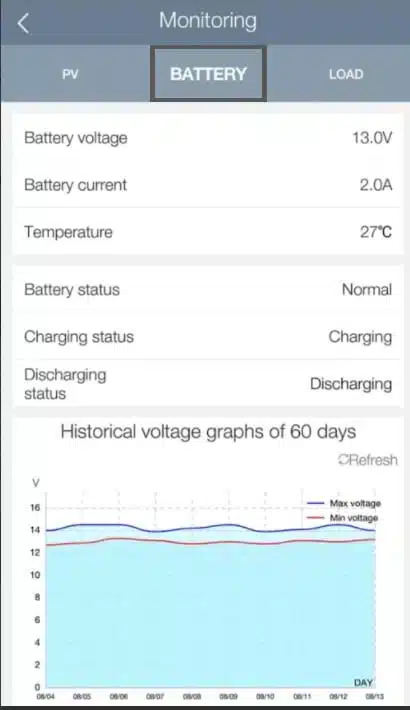

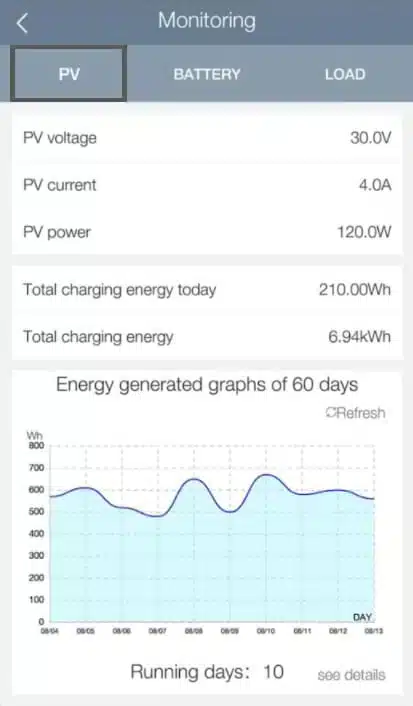

If you are looking to upgrade your existing regulator or build a new solar system, the 10A MPPT Single Output regulator is the solution for you. It can regulate an array of panels up to 120W, and with built-in Bluetooth you can connect your smart device to monitor your solar production and the storage of your batteries. It stores 60 days of production history, so you can better understand your energy needs.

What are the benefits of MPPT?

MPPT checks the output of the PV module and compares it to the battery voltage, then works out the best power the PV module can produce to charge the battery and converts it to the best voltage to get maximum current into the battery. It can also supply power to a DC load connected directly to the battery.

MPPT gives an increase in charging efficiency of up to 30% compared to PWM.

When MPPT works best

MPPT is most effective under these conditions:

  • Cold weather, cloudy or hazy days: PV modules normally work better at cold temperatures, and MPPT is used to extract the maximum power available from them.
  • When the battery is deeply discharged: MPPT can extract more current and charge the battery when its state of charge is low.

See the full range of MPPT solar regulators.

The Features

  • 10A or 20A MPPT single output regulator
  • Bluetooth monitoring from your smartphone
  • Up to 30% more charging efficiency than PWM
  • Tracking efficiency above 99.9%
  • Charge conversion efficiency up to 98%
  • 12/24V system voltage, automatically recognised

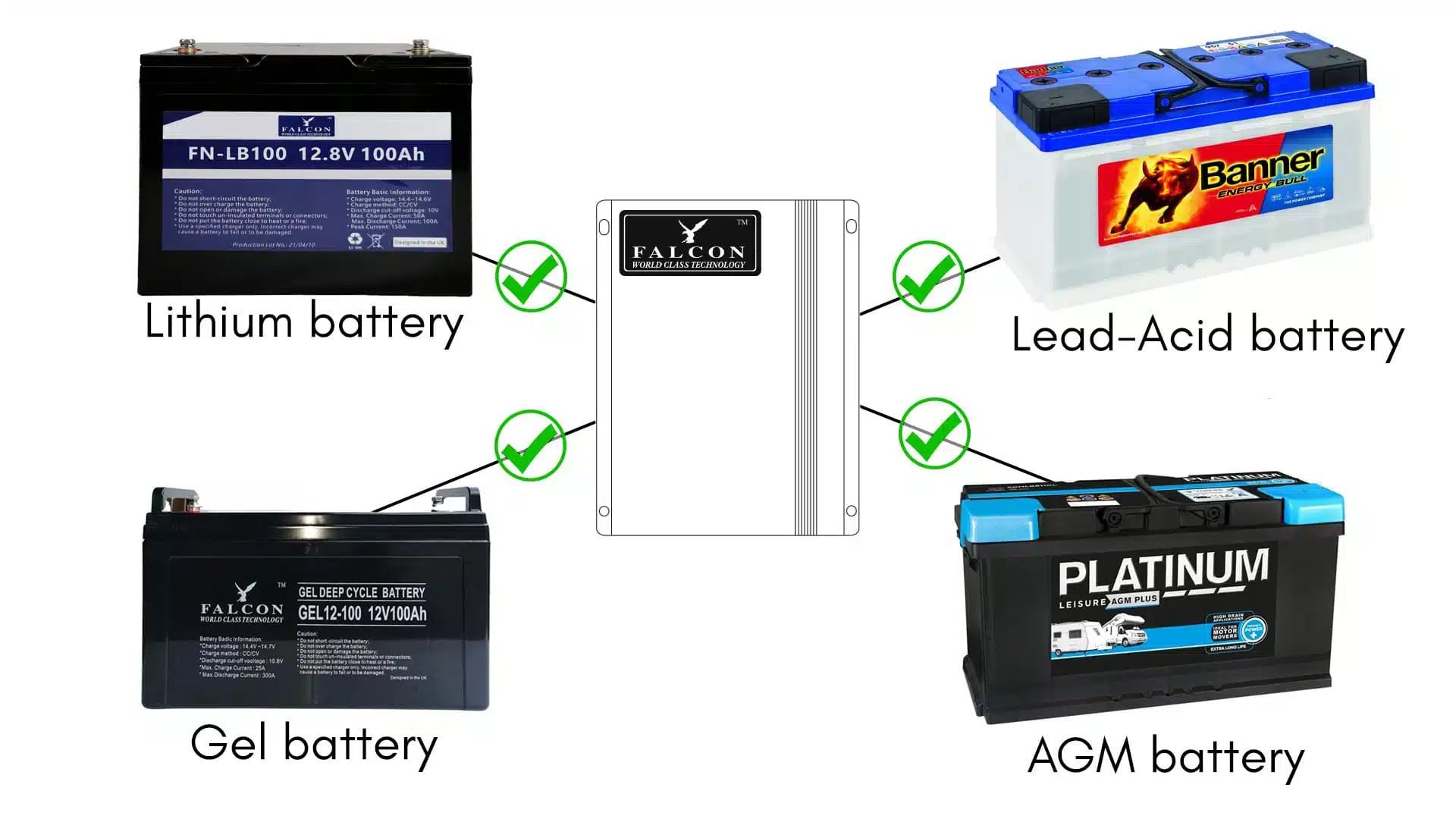

  • Battery selection: Liquid, Gel, AGM and Lithium
  • Four-stage charging: MPPT, boost, equalisation, float
  • Remote temperature sensor for longer battery life
  • Over-temperature protection with built-in power reduction

Product Specifications

Choose your options above to see the full specification for that kit.

Each combination has its own specification. This product comes with these options:

Amperage
  • 10A
  • 20A
Fitting
  • Self Fit
  • We Fit For You
